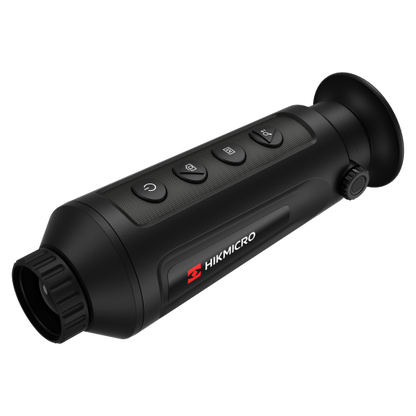

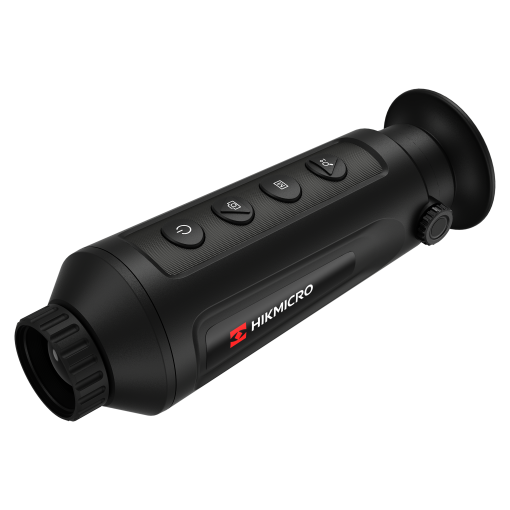

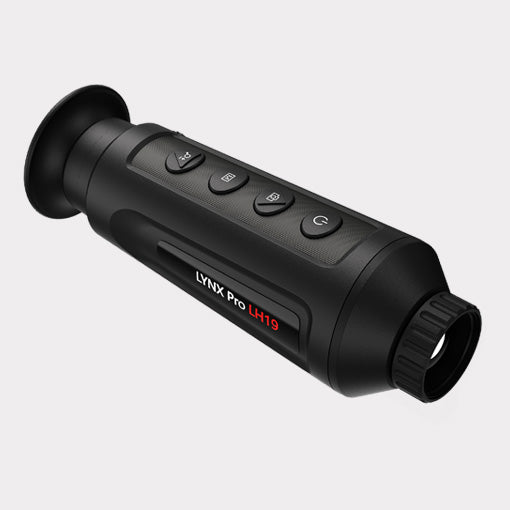

HIKMICRO Lynx Pro LH19 Thermal Monocular

HIKMICRO Lynx Pro LH19 Thermal Monocular

Regular price $1,259.00 USD
Regular price Sale price $1,259.00 USD
Sale Sold out
Tax included.

Time to level up your wildlife observation - welcome to the future, welcome to thermal vision.

The HIKMICRO Lynx Pro LH19 handheld thermal monocular camera is equipped with a 384 × 288 infrared detector and a 1280 × 960 LCOS display. It supports functions of observation, distance measurement, Wi-Fi hot spot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, law enforcement, searching and rescuing, drug enforcement, anti-smuggling, criminal seizing, hiking, travel, and hunting, etc.
Detection range is approximately 900m

Key Features

● 384 × 288 resolution, 12 μm, high sensitivity detector
● Adaptive AGC, DDE, 3D DNR, NETD less than 35 mk (@25°C), F#=1.0
● 1280 × 960 resolution 0.4-inch LCOS display
● Built-in rechargeable lithium battery
● Up to 7.5 hours continuous running
● Wi-Fi hot spot
● Type-C Interface

Specification Details
Battery Type Lithium Battery
Battery Operating Time 7.5 hours continuous running with CVBS and WiFI hot spot function off (@25ºC), 6 hours continuous running with CVBS and WiFi hot spot function on (@25ºC)
Battery Capacity Display Yes
Power 5 VDC/2 A, 1.5 W, Type-C Interface
Working Temperature -20ºC to 55ºC (-4ºF to 131ºF)
Protection Level IP67
Dimension 171mm x 61mm x57mm (6.73" x 2.4" x 2.24mm")
Weight 310g (0.68lb)

Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution 384 x 288
Pixel Interval 12um
Response Waveband 8um-14um
NETD Less than 35mk (@25ºC), F#=1.0
Lens (Focal Length) 19mm
Field of View 13.8º x 10.4º (H x V)
Digital Zoom 1x, 2x, 4x, 8x
Aperture F1.0
Magnification 1.86 to 14.88
Monitor 0.4 inch, LCOS, 1280 x 9630
FFC (Flat Field Correction) Auto, Manual, External Correction
Palettes Black Hot, White Hot, Red Hot, Fusion
Frame Frequency 50Hz
Detection Range 897m
WiFi Hot Spot Yes
Standby Mode Yes
Storage Built-in memory module (8GB)
Record Video Yes
Capture Snapshot Yes
