HIKMICRO Stellar SQ50 Thermal Scope
HIKMICRO Stellar SQ50 Thermal Scope
THE HIKMICRO STELLAR SQ50 Thermal Image Scope has a 640*512 thermal detector and 1024*768 OLED display, which provides a clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The traditional-style 50mm Tube meets the needs of professional hunters who value traditions and seek technological superiority, ensuring an extreme detection range of up to 2600 meters.
Key Features:
– 640*512 Thermal resolution, high sensitivity detector, NETD <35mK (25ºC, F# = 1.0)
– Supports audio recording
– Supports recoil-activation recording
– Supports video recording and snapshot, built-in EMMC (64GB)
– 1024*768 resolution 0.39-inch OLED display
– Observation distance up to 2600m
Introducing HIKMICRO STELLAR Series | thermal scope | thermalimager - YouTube
50mm LENS
The HIKMICRO Stellar SQ50 Thermal Scope comes with the all time most popular 50mm lens. The SQ50 is interpreted and processed by the 640×512 thermal sensor and shown on the OLED display in a resolution of 1024×768 pixels, the unit has the ability to keep a crystal clear image while also having an impressive Field Of View.

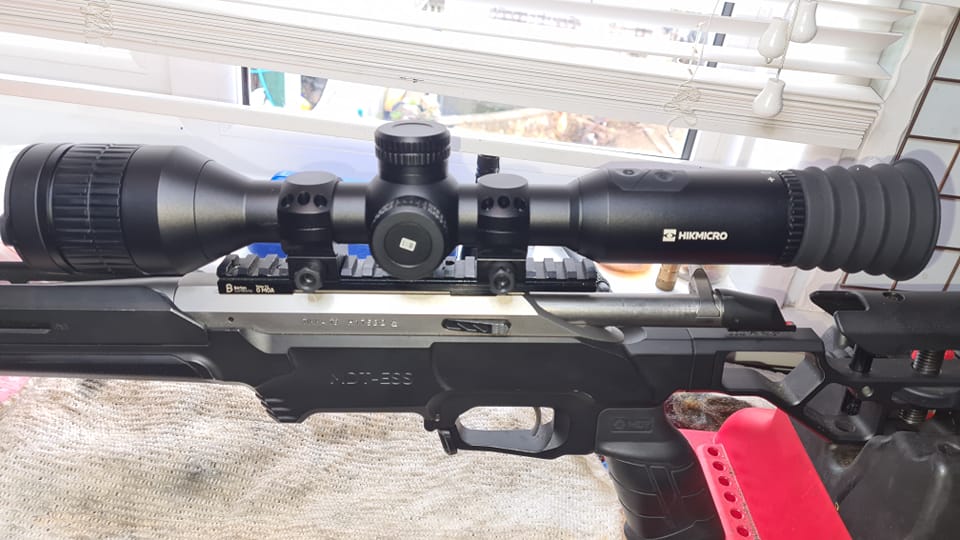

30mm RING MOUNTING
HIKMICRO put this high-tech system in a traditional looking exterior by retaining the well-known rifle scope design, this enables users who prefer this look to still utilise the outstanding features of this thermal imaging rifle scope and also keep using the conventional mounting system. With a slick new-aged look, The Stellar SQ50 can be mounted on 30mm rings, making changing from weapon to weapon a much easier and more effective process.
EXTENDED BATTERY LIFE
The HIKMICRO Stellar SQ50 Thermal Scope comes with two internal Lithium batteries and a replaceable CR123A battery, these power sources provide the user with 15 hours of use, which can be extended by replacing the CR123A battery when it’s used up.
Specification | |
Thermal Module | |
Image Sensor | Uncooled Focal Plane Array |
Max. Resolution | 640 × 512 |
Frame Rate | 50 Hz |
Pixel Interval | 12 μm |
Response Waveband | 8 μm to 14 μm |
NETD | < 35 mK (25°C, F# = 1.0) |
Lens (Focal Length) | 50 mm |
Detection Range | 2600 m |
Field of View | 8.80° × 7.03° |
Min. Focusing Distance | 5 m |
Aperture | F1.0 |
Magnification | 2.31× |
Image Display | |
Display | 1024 × 768, 0.39 inch, OLED |
Image Mode | Black Hot, White Hot, Red Hot, Fusion |
FFC (Flat Field Correction) Mode | Auto, Manual, External Correction |
Exit Pupil | 5 mm |
Eye Relief | 60 mm |
Diopter (Range) | -5 D to 5 D |
System | |
Digital Zoom | 1×, 2×, 4×, 8× |
Capture Snapshot | Yes |
Record Video | On-board video recording |
Standby Mode | Yes |
Storage | Built-in EMMC (64 GB) |
PIP | Yes |
DPC | Yes |
Hotspot | Yes |
Uniformity Correction | Auto, Manual, External Correction |
Hot Track | Yes |
Reticle | Yes |
Audio Recording | Yes |
Recoil-activation Recording | Yes |
Max. Recoil | 1000g |
Power Supply | |
Battery Type | Two rechargeable Lithium batteries (internal) and one replaceable CR123A (external) |
Battery Operating Time | 13 hours continuous running (@25°C, Wi-Fi off) |
Battery Capacity Display | Yes |
Anti-reverse Battery Connection | Yes |
Overvoltage Protection | Yes |
Power Supply | 5 V DC/2 A, USB Type-C interface
Supports QC3.0 |
General | |
Work Temperature | -30°C to 55°C (-22°F to 131°F) |
Protection Level | IP67 |
Dimension | 420mm × 78.1 mm × 82 mm |
Weight | 970 g without eyepiece and CR123A |
